DN1509N8-G

MOSFET N-CH 90V 360MA TO243AA

Quantity
RFQ
Specifications
Part Number:DN1509N8-G
Manufacturer:Micrel / Microchip Technology
Description:MOSFET N-CH 90V 360MA TO243AA
RoHs Status:
ROHS3 Compliant
Nkesp Part Number:73D-DN1509N8-G
Part Status22616 pcs
Manufacturer:Micrel / Microchip Technology
Vgs(th) (Max) @ Id:-
Vgs (Max):±20V
Technology:MOSFET (Metal Oxide)
Supplier Device Package:TO-243AA (SOT-89)
Series:-
Rds On (Max) @ Id, Vgs:6Ohm @ 200mA, 0V
Power Dissipation (Max):1.6W (Ta)
Package / Case:TO-243AA
Package:Tape & Reel (TR)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Input Capacitance (Ciss) (Max) @ Vds:150 pF @ 25 V
FET Type:N-Channel
FET Feature:Depletion Mode
Drive Voltage (Max Rds On, Min Rds On):0V
Drain to Source Voltage (Vdss):90 V
Current - Continuous Drain (Id) @ 25°C:360mA (Tj)
Base Product Number:DN1509N8
Download Details PDF:

In stock: 22616 pcs

Request Quote
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.

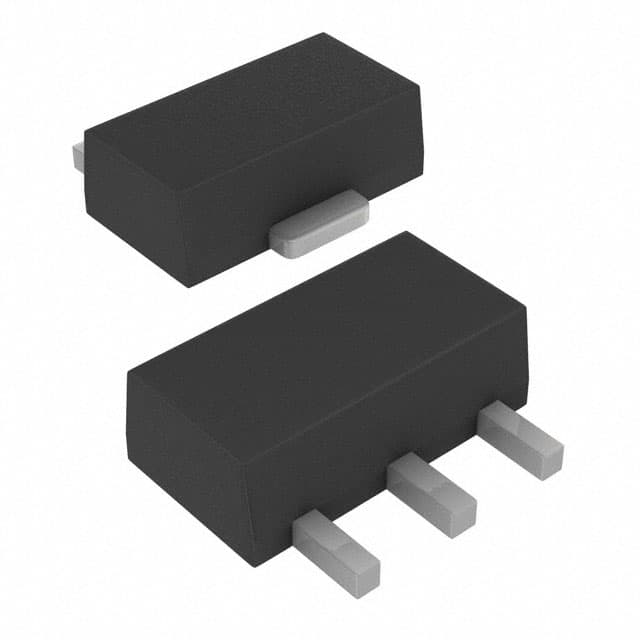

DN1509N8-G Image
Quantity
QUICK RFQ

Data sheet

Product Comparison

Part Number DN1509K1-G
DN1509K1-G
IPA093N06N3GXKSA1
IPA093N06N3GXKSA1
DMNH4011SK3Q-13
DMNH4011SK3Q-13
NTR4101PT1G
NTR4101PT1G
ManufacturerMicrochip TechnologyInfineon TechnologiesDiodes Incorporatedonsemi
Drive Voltage (Max Rds On, Min Rds On)----
Input Capacitance (Ciss) (Max) @ Vds----
FET Type----
Operating Temperature----
Base Product Number----
Vgs(th) (Max) @ Id----
Supplier Device Package----
Drain to Source Voltage (Vdss)----
Mounting Type----
Package / Case----
Vgs (Max)----
Rds On (Max) @ Id, Vgs----
FET Feature----
Series-***
Package-BulkBulkBulk
Power Dissipation (Max)----
Technology----
Current - Continuous Drain (Id) @ 25°C----
