CSD23202W10

MOSFET P-CH 12V 2.2A 4DSBGA

Quantity
RFQ
Specifications
Part Number:CSD23202W10
Manufacturer:N/A
Description:MOSFET P-CH 12V 2.2A 4DSBGA
RoHs Status:
ROHS3 Compliant
Nkesp Part Number:73D-CSD23202W10
Part Status113420 pcs
Manufacturer:N/A
Vgs(th) (Max) @ Id:900mV @ 250µA
Vgs (Max):-6V
Technology:MOSFET (Metal Oxide)
Supplier Device Package:4-DSBGA (1x1)
Series:NexFET™
Rds On (Max) @ Id, Vgs:53mOhm @ 500mA, 4.5V
Power Dissipation (Max):1W (Ta)
Package / Case:4-UFBGA, DSBGA
Package:Tape & Reel (TR)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Input Capacitance (Ciss) (Max) @ Vds:512 pF @ 6 V
Gate Charge (Qg) (Max) @ Vgs:3.8 nC @ 4.5 V
FET Type:P-Channel
FET Feature:-
Drive Voltage (Max Rds On, Min Rds On):1.5V, 4.5V
Drain to Source Voltage (Vdss):12 V
Current - Continuous Drain (Id) @ 25°C:2.2A (Ta)
Base Product Number:CSD23202

In stock: 113420 pcs

Request Quote
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.

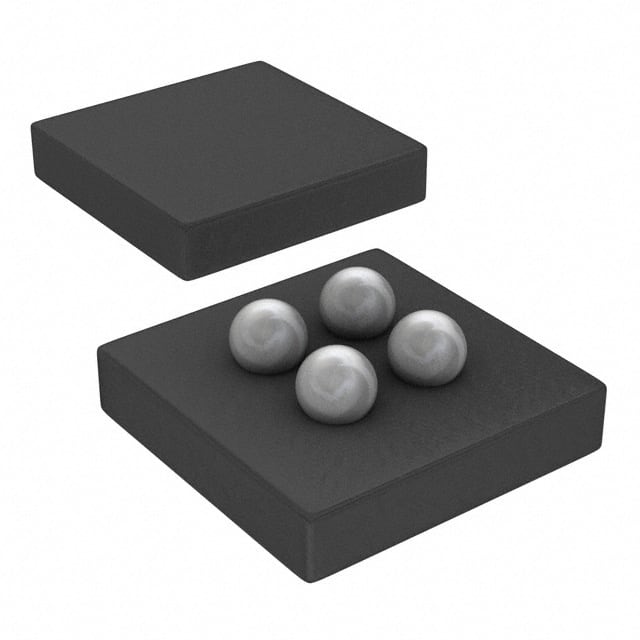

CSD23202W10 Image
Quantity
QUICK RFQ

Product Comparison

Part Number CSD23202W10T
CSD23202W10T
CSD23201W10
CSD23201W10
CSD22202W15
CSD22202W15
CSD23203W
CSD23203W
ManufacturerN/AN/AN/AN/A
Package / Case----
Rds On (Max) @ Id, Vgs----
Gate Charge (Qg) (Max) @ Vgs----
Series-***
Base Product Number----
Vgs (Max)----
Technology----
Current - Continuous Drain (Id) @ 25°C----
Package-BulkBulkBulk
Power Dissipation (Max)----
FET Type----
Operating Temperature----
Supplier Device Package----
FET Feature----
Input Capacitance (Ciss) (Max) @ Vds----
Vgs(th) (Max) @ Id----
Drive Voltage (Max Rds On, Min Rds On)----
Mounting Type----
Drain to Source Voltage (Vdss)----
