STS9P3LLH6

MOSFET P-CH 30V 9A 8SO

Quantity
RFQ
Specifications
Part Number:STS9P3LLH6
Manufacturer:STMicroelectronics
Description:MOSFET P-CH 30V 9A 8SO
RoHs Status:
ROHS3 Compliant
Nkesp Part Number:73D-STS9P3LLH6
Part Status3652 pcs
Manufacturer:STMicroelectronics
Vgs(th) (Max) @ Id:2V @ 250µA
Vgs (Max):±20V
Technology:MOSFET (Metal Oxide)
Supplier Device Package:8-SO
Series:STripFET™ H6
Rds On (Max) @ Id, Vgs:15mOhm @ 4.5A, 10V
Power Dissipation (Max):2.7W (Ta)
Package / Case:8-SOIC (0.154", 3.90mm Width)
Package:Tape & Reel (TR)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Input Capacitance (Ciss) (Max) @ Vds:2615 pF @ 25 V
Gate Charge (Qg) (Max) @ Vgs:24 nC @ 4.5 V
FET Type:P-Channel
FET Feature:-
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:9A (Ta)
Base Product Number:STS9P
Download Details PDF:

In stock: 3652 pcs

Request Quote
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.

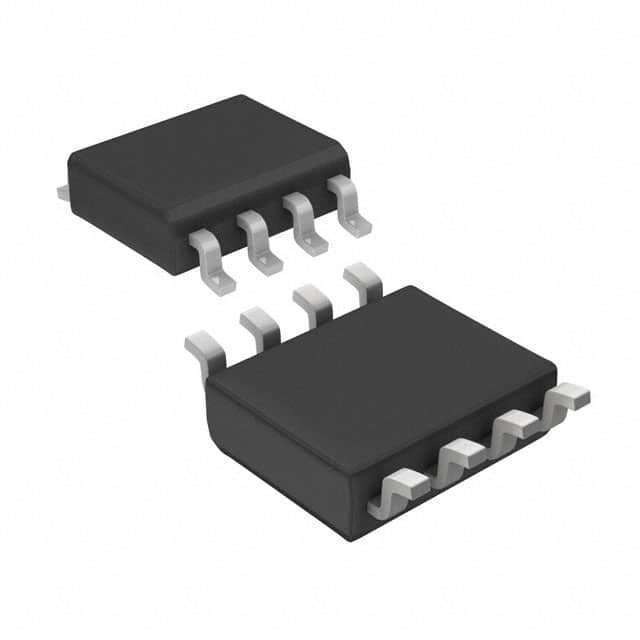

STS9P3LLH6 Image
Quantity
QUICK RFQ

Data sheet

Product Comparison

Part Number STS7N3LLH6
STS7N3LLH6
STS9NH3LL
STS9NH3LL
STS9NF3LL
STS9NF3LL
STS7P4LLF6
STS7P4LLF6
ManufacturerSTMicroelectronicsSTMicroelectronicsSTMicroelectronicsSTMicroelectronics
Power Dissipation (Max)----
FET Type----
Drive Voltage (Max Rds On, Min Rds On)----
Series-***
Base Product Number----
Drain to Source Voltage (Vdss)----
Operating Temperature----
Input Capacitance (Ciss) (Max) @ Vds----
Vgs (Max)----
Package-BulkBulkBulk
Current - Continuous Drain (Id) @ 25°C----
FET Feature----
Gate Charge (Qg) (Max) @ Vgs----
Rds On (Max) @ Id, Vgs----
Package / Case----
Mounting Type----
Technology----
Supplier Device Package----
Vgs(th) (Max) @ Id----
